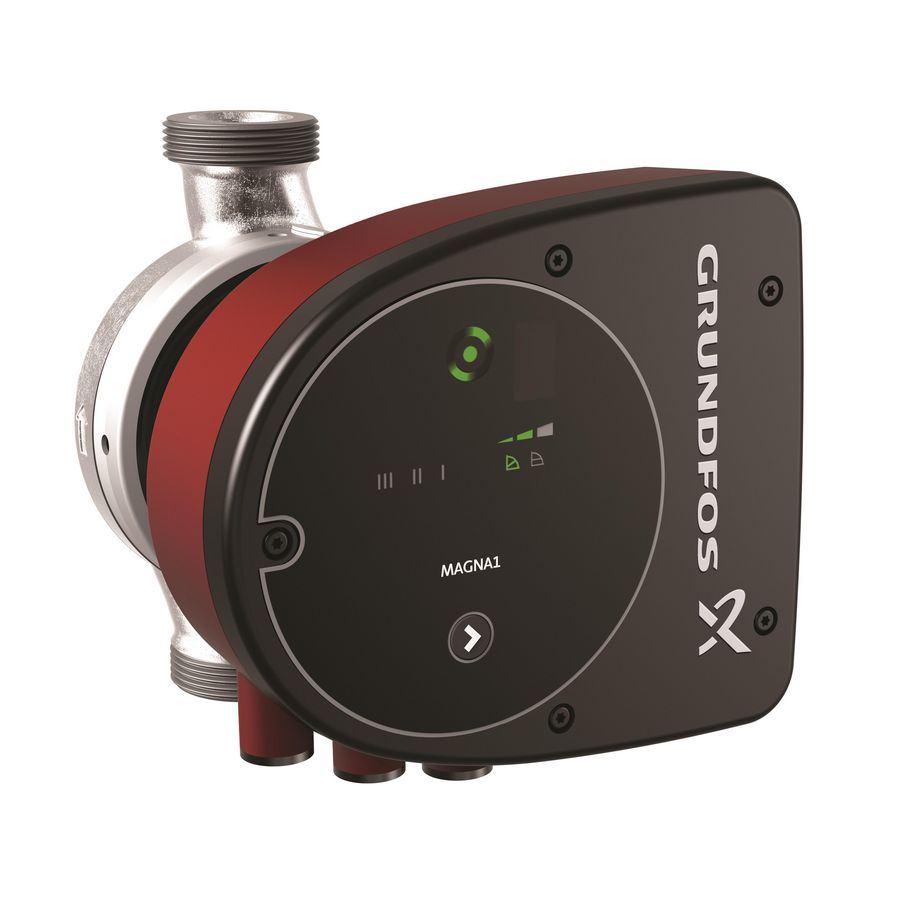

Tapwaterpomp Magna1 32-60 180mm PN6/10 230v GRUNDFOS
0102944
MFG #: 99221254
€2.242,00
/ 1.00
- 5G-netwerk standaard: Nee
- Aansluiting: Buitendraad cilindrisch BSPP-G (ISO 228-1)
- Aansluiting inlaatzijde: Buitendraad cilindrisch BSPP-G (ISO 228-1)
- Aansluiting perszijde: Buitendraad cilindrisch BSPP-G (ISO 228-1)
- Aansluitmaat pomphuis: 2"
- Aansluitspanning: 1 x 230 V
- Aansluitstandaard inlaatzijde: EN 1092-2
- Aansluitstandaard perszijde: EN 1092-2
- Aantal fasen: 1
- Beschermingsgraad (IP): IPX4
- Bluetooth-netwerk standaard: Nee
- Breedte 1: 69 mm
- Breedte 2: 111 mm
- Communicatie: Ingebouwd en voorbereid
- Communicatiebus: Met toebehoren mogelijk
- Druk bij volumestroom (BEP): 47,73 kPa
- Druktrap flens aansluiting inlaatzijde: PN 10
- Druktrap flens aansluiting perszijde: PN 10
- Druktrap klasse: PN 10
- Druktrap klasse flens: PN 10
- Dubbelpomp: Nee
- Elektrische aansluiting: Overig
- Energie Efficiëntie Index (EEI): 0,2
- Energieverbruik pomp (solpump): 111
- Flensvorm ovaal: Nee
- Frequentie: 50/60 Hz
- Hoogte pomp: 142 mm
- Inbouwlengte: 180 mm
- Interface pulsbreedtemodulatie (PWM): Nee
- Interface pulsteller: Nee
- Interface signaal 0-10 V / 2-10 V: Nee
- Interface signaal 0-20 mA / 4-20 mA: Nee
- Interface signaal PT100 / PT1000 / PTC: Nee
- Isolatieklasse volgens IEC: F
- Kwaliteitsklasse: Overig
- Kwaliteitsklasse materiaal waaier: Overig
- Kwaliteitsklasse pomphuis: RVS 304 (1.4308)
- Materiaal behuizing: Roestvaststaal (RVS)
- Materiaal pomphuis: Roestvaststaal (RVS)
- Materiaal waaier / pompwiel: Overig
- Max. debiet: 9,1 m³/h
- Max. mediumtemperatuur (continu): 110 °C
- Max. opvoerhoogte: 6 m
- Max. werkdruk: 10 bar
- Mediumtemperatuur (continu): -10 - 110 °C
- Merk: GRUNDFOS
- Met communicatie-interface RS-232: Nee
- Met communicatie-interface RS-485: Nee
- Min. mediumtemperatuur (continu): -10 °C
- Nom. debiet: 4,56 m³/h
- Nom. diameter: DN 32
- Nom. diameter aansluiting inlaatzijde: 2" (50)
- Nom. diameter aansluiting perszijde: 2" (50)
- Nom. spanning: 230 - 230 V
- Nom. stroom: 0,9 A
- Omgevingstemperatuur: 0 - 40 °C
- Ondersteunt protocol voor BACnet IP: Nee
- Ondersteunt protocol voor BACnet MS / TP: Nee
- Ondersteunt protocol voor CAN / CANOpen: Nee
- Ondersteunt protocol voor EtherNet/IP: Nee
- Ondersteunt protocol voor KNX: Nee
- Ondersteunt protocol voor LIN Bus: Nee
- Ondersteunt protocol voor LON / LONWorks: Nee
- Ondersteunt protocol voor Modbus RTU: Nee
- Ondersteunt protocol voor Modbus TCP: Nee
- Ondersteunt protocol voor PROFIBUS: Nee
- Ondersteunt protocol voor PROFINET IO: Nee
- Opgenomen motorvermogen (P1): 0,11 kW
- Opvoerhoogte bij nom. debiet: 47,73 kPa
- Pompschakeling: Overig
- Potentiaalvrij schakelcontact: Ja
- Radiostandaard WLAN 802.11: Nee
- Serie: Magna
- Standaard radio 2G / 3G / 4G: Nee
- Toerenregeling motor: Ingebouwd
- Toerental: 3516 1/min
- Type: MAGNA1 N (tapwateruitvoering, RVS)
- Type toerenregeling: Traploos
- Volumestroom (BEP): 4,56 m³/h
