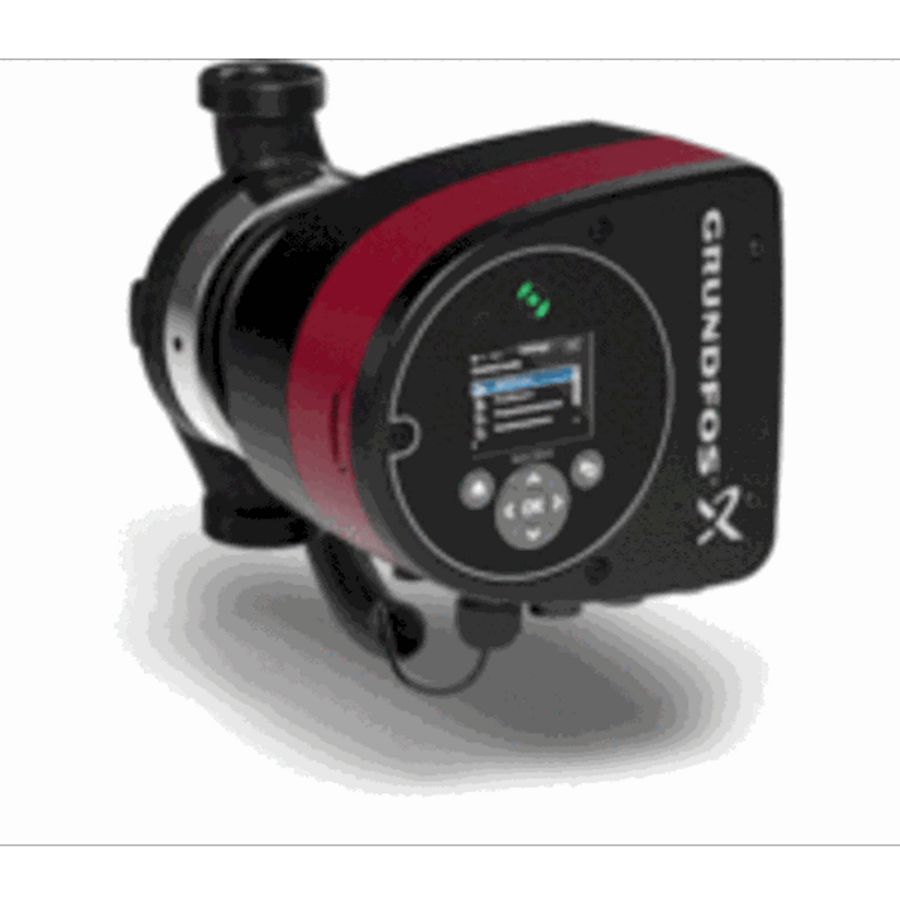

Circulatiepomp Magna3 25-120 1.1/2"bt. 180mm PN16 230v GRUNDFOS

0502159 MFG #: 97924253
€2.370,00 / 1.00
  • 5G-netwerk standaard: Nee
  • Aansluiting: Buitendraad cilindrisch BSPP-G (ISO 228-1)
  • Aansluiting inlaatzijde: Buitendraad cilindrisch BSPP-G (ISO 228-1)
  • Aansluiting perszijde: Buitendraad cilindrisch BSPP-G (ISO 228-1)
  • Aansluitmaat pomphuis: 1 1/2"
  • Aansluitspanning: 1 x 230 V
  • Aansluitstandaard inlaatzijde: ISO 228-1
  • Aansluitstandaard perszijde: ISO 228-1
  • Aantal fasen: 1
  • Beschermingsgraad (IP): IPX4
  • Bluetooth-netwerk standaard: Nee
  • Breedte 1: 69 mm
  • Breedte 2: 111 mm
  • Communicatie: Ingebouwd en voorbereid
  • Communicatiebus: Met toebehoren mogelijk
  • Druk bij volumestroom (BEP): 73,23 kPa
  • Druktrap flens aansluiting inlaatzijde: PN 16
  • Druktrap flens aansluiting perszijde: PN 16
  • Druktrap klasse: PN 16
  • Druktrap klasse flens: PN 16
  • Dubbelpomp: Nee
  • Elektrische aansluiting: Overig
  • Energie Efficiëntie Index (EEI): 0,18
  • Energie-efficiëntieklasse: A
  • Energieverbruik pomp (solpump): 185
  • Flensvorm ovaal: Nee
  • Frequentie: 50/60 Hz
  • Hoogte pomp: 185 mm
  • Inbouwlengte: 180 mm
  • Interface pulsbreedtemodulatie (PWM): Nee
  • Interface pulsteller: Nee
  • Interface signaal 0-10 V / 2-10 V: Ja
  • Interface signaal 0-20 mA / 4-20 mA: Ja
  • Interface signaal PT100 / PT1000 / PTC: Nee
  • Isolatieklasse volgens IEC: F
  • KIWA-keur: Nee
  • Kwaliteitsklasse: Gietijzer GG 20 (GJL-200)
  • Kwaliteitsklasse materiaal waaier: Overig
  • Kwaliteitsklasse pomphuis: Gietijzer GG 20 (GJL-200)
  • Materiaal behuizing: Gietijzer
  • Materiaal pomphuis: Gietijzer
  • Materiaal waaier / pompwiel: Overig
  • Max. debiet: 9,7 m³/h
  • Max. mediumtemperatuur (continu): 110 °C
  • Max. opvoerhoogte: 12 m
  • Max. werkdruk: 16 bar
  • Mediumtemperatuur (continu): -10 - 110 °C
  • Merk: GRUNDFOS
  • Met communicatie-interface RS-232: Nee
  • Met communicatie-interface RS-485: Ja
  • Min. mediumtemperatuur (continu): -10 °C
  • Motorvermogen: 193 W
  • Nom. debiet: 5,56 m³/h
  • Nom. diameter: DN 25
  • Nom. diameter aansluiting inlaatzijde: 1 1/2" (40)
  • Nom. diameter aansluiting perszijde: 1 1/2" (40)
  • Nom. spanning: 230 - 230 V
  • Nom. stroom: 1,56 A
  • Omgevingstemperatuur: 0 - 40 °C
  • Ondersteunt protocol voor BACnet IP: Nee
  • Ondersteunt protocol voor BACnet MS / TP: Ja
  • Ondersteunt protocol voor CAN / CANOpen: Nee
  • Ondersteunt protocol voor EtherNet/IP: Ja
  • Ondersteunt protocol voor KNX: Nee
  • Ondersteunt protocol voor LIN Bus: Nee
  • Ondersteunt protocol voor LON / LONWorks: Ja
  • Ondersteunt protocol voor Modbus RTU: Ja
  • Ondersteunt protocol voor Modbus TCP: Nee
  • Ondersteunt protocol voor PROFIBUS: Ja
  • Ondersteunt protocol voor PROFINET IO: Nee
  • Opgenomen motorvermogen (P1): 0,19 kW
  • Opvoerhoogte bij nom. debiet: 73,23 kPa
  • Pompschakeling: Overig
  • Potentiaalvrij schakelcontact: Ja
  • Radiostandaard WLAN 802.11: Nee
  • Serie: Magna
  • Standaard radio 2G / 3G / 4G: Ja
  • Toerenregeling motor: Ingebouwd
  • Toerental: 4980 1/min
  • Type: MAGNA3
  • Type toerenregeling: Traploos
  • Volumestroom (BEP): 5,56 m³/h
  • Zelfaanzuigend: Nee
