Inlinepomp TPD 100-200/2-A-F-A-BQQE 400D 50HZ GRUNDFOS
0AZ0225
MFG #: 96109246
€9.900,00
/ 1.00
- 5G-netwerk standaard: Nee
- Aansluiting: Flens
- Aansluiting inlaatzijde: Flens
- Aansluiting perszijde: Flens
- Aansluitmaat pomphuis: DN 100
- Aansluitspanning: 3 x 400 V
- Aansluitstandaard inlaatzijde: EN 1092-2
- Aansluitstandaard perszijde: EN 1092-2
- Aantal fasen: 3
- Afgegeven motorvermogen (P2): 5,5 kW
- Beschermingsgraad (IP): IP55
- Bluetooth-netwerk standaard: Nee

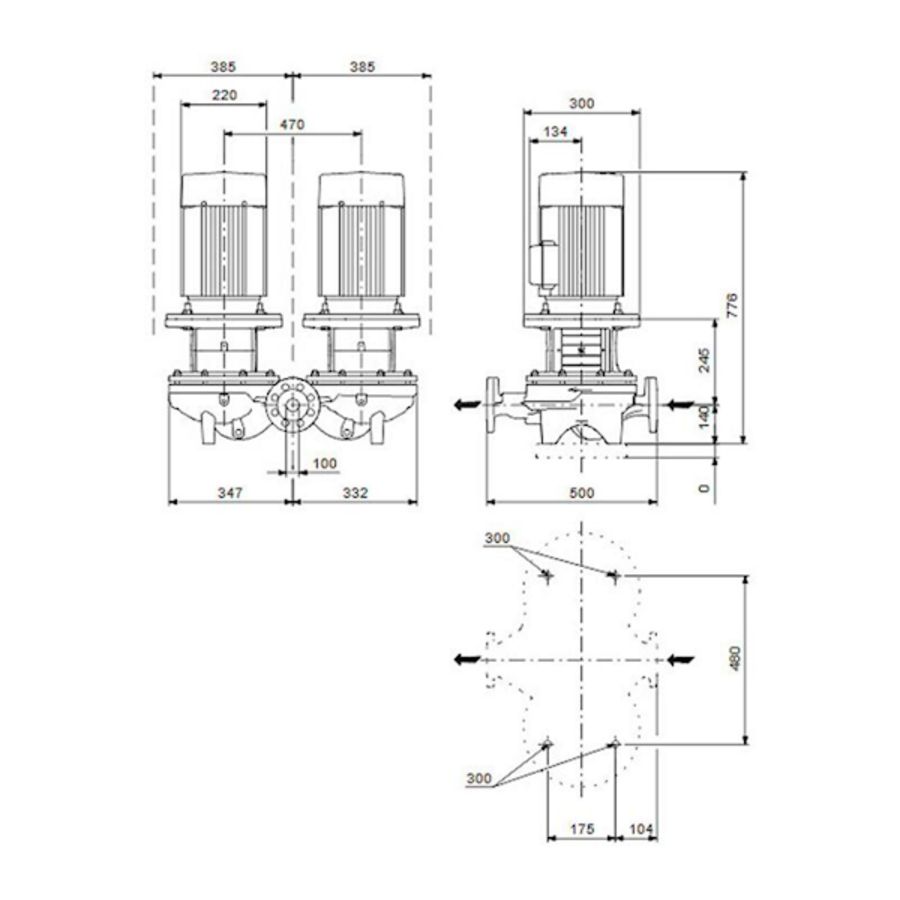

- Breedte 1: 347 mm
- Breedte 2: 332 mm
- Communicatie: Geen
- Druk bij volumestroom (BEP): 167,65 kPa
- Druktrap flens aansluiting inlaatzijde: PN 16
- Druktrap flens aansluiting perszijde: PN 16
- Druktrap klasse: PN 16
- Druktrap klasse flens: PN 16
- Dubbelpomp: Ja
- Elektrische aansluiting: Aansluitklemmen
- Explosieveilig: Nee
- Frequentie: 50 Hz
- Hoogte pomp: 776 mm
- Inbouwlengte: 500 mm
- Interface pulsbreedtemodulatie (PWM): Nee
- Interface pulsteller: Nee
- Interface signaal 0-10 V / 2-10 V: Nee
- Interface signaal 0-20 mA / 4-20 mA: Nee
- Interface signaal PT100 / PT1000 / PTC: Nee
- Isolatieklasse volgens IEC: F
- Kwaliteitsklasse: Gietijzer GG 25 (GJL-250)
- Kwaliteitsklasse materiaal waaier: Gietijzer GGG 40
- Kwaliteitsklasse pomphuis: Gietijzer GG 25 (GJL-250)
- Materiaal behuizing: Gietijzer
- Materiaal pomphuis: Gietijzer
- Materiaal waaier / pompwiel: Gietijzer
- Max. debiet: 75,7 m³/h
- Max. mediumtemperatuur (continu): 120 °C
- Max. opvoerhoogte: 20 m
- Max. werkdruk: 16 bar
- Mediumtemperatuur (continu): -25 - 120 °C
- Merk: GRUNDFOS
- Met communicatie-interface RS-232: Nee
- Met communicatie-interface RS-485: Nee
- Met ovale tegenflenzen: Nee
- Min. mediumtemperatuur (continu): -25 °C
- Minimum Efficiëntie Index (MEI): 0,58
- Motor energie-efficiëntieklasse: IE3
- Motor met verlengde as: Nee
- Motorvermogen: 5,5 kW
- Nom. debiet: 75,7 m³/h
- Nom. diameter: DN 100
- Nom. diameter aansluiting inlaatzijde: DN 100
- Nom. diameter aansluiting perszijde: DN 100
- Nom. spanning: 380 - 415 V
- Nom. stroom: 11 A
- Normmotor: Ja
- Omgevingstemperatuur: -30 - 60 °C
- Ondersteunt protocol voor BACnet IP: Nee
- Ondersteunt protocol voor BACnet MS / TP: Nee
- Ondersteunt protocol voor CAN / CANOpen: Nee
- Ondersteunt protocol voor EtherNet/IP: Nee
- Ondersteunt protocol voor KNX: Nee
- Ondersteunt protocol voor LIN Bus: Nee
- Ondersteunt protocol voor LON / LONWorks: Nee
- Ondersteunt protocol voor Modbus RTU: Nee
- Ondersteunt protocol voor Modbus TCP: Nee
- Ondersteunt protocol voor PROFIBUS: Nee
- Ondersteunt protocol voor PROFINET IO: Nee
- Opvoerhoogte bij nom. debiet: 167,65 kPa
- Potentiaalvrij schakelcontact: Nee
- Radiostandaard WLAN 802.11: Nee
- Serie: TPD (dubbelpomp)
- Standaard radio 2G / 3G / 4G: Nee
- Toerenregeling motor: Geen
- Toerental: 2920 1/min
- Type: DN100, 2-polig (2900 tpm)
- Volumestroom (BEP): 75,7 m³/h
- Zelfaanzuigend: Nee
