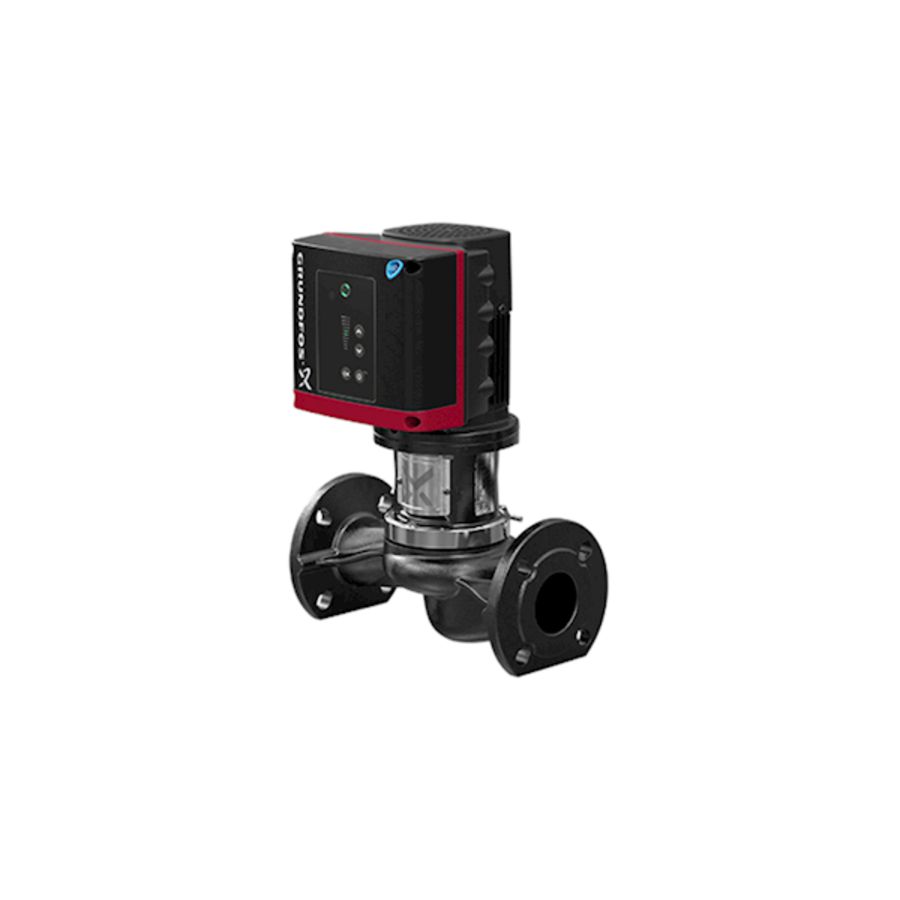

Inlinepomp TPE2 65-180-N-A-F-A-BQQE 1x230V PN6/10 GRUNDFOS

0AZ2769 MFG #: 98438359
€5.959,00 / 1.00
  • Inbouwlengte: 340 mm
  • Max. opvoerhoogte: 18 m
  • Max. werkdruk: 10 bar
  • Merk: GRUNDFOS
  • Serie: TPE (toerengeregeld)
  • Type: DN65, Excl. drukopnemer
  • 5G-netwerk standaard: Nee
  • Aansluiting inlaatzijde: Flens
  • Aansluiting perszijde: Flens
  • Aansluitstandaard inlaatzijde: EN 1092-2
  • Aansluitstandaard perszijde: EN 1092-2
  • Aantal fasen: 1
  • Afgegeven motorvermogen (P2): 1,5 kW
  • Beschermingsgraad (IP): IP55
  • Bluetooth-netwerk standaard: Nee
  • Communicatie: Ingebouwd en voorbereid
  • Druk bij volumestroom (BEP): 116,67 kPa
  • Druktrap flens aansluiting inlaatzijde: PN 10
  • Druktrap flens aansluiting perszijde: PN 10
  • Dubbelpomp: Nee
  • Elektrische aansluiting: Aansluitklemmen
  • Explosieveilig: Nee
  • Frequentie: 50/60 Hz
  • Interface pulsbreedtemodulatie (PWM): Nee
  • Interface pulsteller: Nee
  • Interface signaal 0-10 V / 2-10 V: Ja
  • Interface signaal 0-20 mA / 4-20 mA: Ja
  • Interface signaal PT100 / PT1000 / PTC: Ja
  • Isolatieklasse volgens IEC: F
  • Kwaliteitsklasse materiaal waaier: Overig
  • Kwaliteitsklasse pomphuis: Gietijzer EN-GJL-250 (GG 25)
  • Materiaal pomphuis: Gietijzer
  • Materiaal waaier / pompwiel: Overig
  • Max. debiet: 37,2 m³/h
  • Mediumtemperatuur (continu): -25 - 120 °C
  • Met communicatie-interface RS-232: Nee
  • Met communicatie-interface RS-485: Ja
  • Minimum Efficiëntie Index (MEI): 0,7
  • Motor energie-efficiëntieklasse: IE5
  • Motor met verlengde as: Nee
  • Nom. diameter aansluiting inlaatzijde: DN 65
  • Nom. diameter aansluiting perszijde: DN 65
  • Nom. spanning: 200 - 240 V
  • Nom. stroom: 8 A
  • Normmotor: Ja
  • Omgevingstemperatuur: -20 - 50 °C
  • Ondersteunt protocol voor BACnet IP: Ja
  • Ondersteunt protocol voor BACnet MS / TP: Ja
  • Ondersteunt protocol voor CAN / CANOpen: Nee
  • Ondersteunt protocol voor EtherNet/IP: Ja
  • Ondersteunt protocol voor KNX: Nee
  • Ondersteunt protocol voor LIN Bus: Nee
  • Ondersteunt protocol voor LON / LONWorks: Ja
  • Ondersteunt protocol voor Modbus RTU: Ja
  • Ondersteunt protocol voor Modbus TCP: Ja
  • Ondersteunt protocol voor PROFIBUS: Ja
  • Ondersteunt protocol voor PROFINET IO: Nee
  • Potentiaalvrij schakelcontact: Ja
  • Radiostandaard WLAN 802.11: Nee
  • Standaard radio 2G / 3G / 4G: Nee
  • Toerenregeling motor: Ingebouwd
  • Toerental: 4470 1/min
  • Type toerenregeling: Traploos
  • Volumestroom (BEP): 37,2 m³/h
  • Zelfaanzuigend: Nee
