Inlinepomp TP 25-90/2-A-O-A-BQQE 1X230 50HZ GRUNDFOS
0BD5595
MFG #: 98346604
€1.445,00
/ 1.00
- 5G-netwerk standaard: Nee
- Aansluiting: Buitendraad cilindrisch BSPP-G (ISO 228-1)
- Aansluiting inlaatzijde: Buitendraad cilindrisch BSPP-G (ISO 228-1)
- Aansluiting perszijde: Buitendraad cilindrisch BSPP-G (ISO 228-1)
- Aansluitmaat pomphuis: 1 1/2"
- Aansluitspanning: 1 x 230 V
- Aansluitstandaard inlaatzijde: ISO 228-1
- Aansluitstandaard perszijde: ISO 228-1
- Aantal fasen: 1
- Afgegeven motorvermogen (P2): 0,37 kW
- Beschermingsgraad (IP): IP55
- Bluetooth-netwerk standaard: Nee
- Breedte 1: 60 mm
- Breedte 2: 68 mm
- Communicatie: Geen
- Druk bij volumestroom (BEP): 77,75 kPa
- Druktrap flens aansluiting inlaatzijde: PN 10
- Druktrap flens aansluiting perszijde: PN 10
- Druktrap klasse: PN 10
- Druktrap klasse flens: PN 10
- Dubbelpomp: Nee

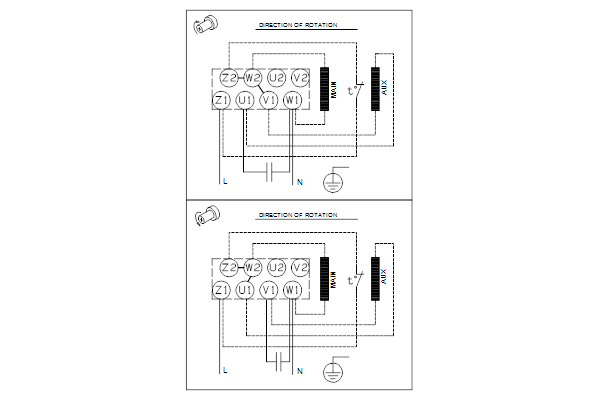

- Elektrische aansluiting: Aansluitklemmen
- Explosieveilig: Nee
- Frequentie: Overig

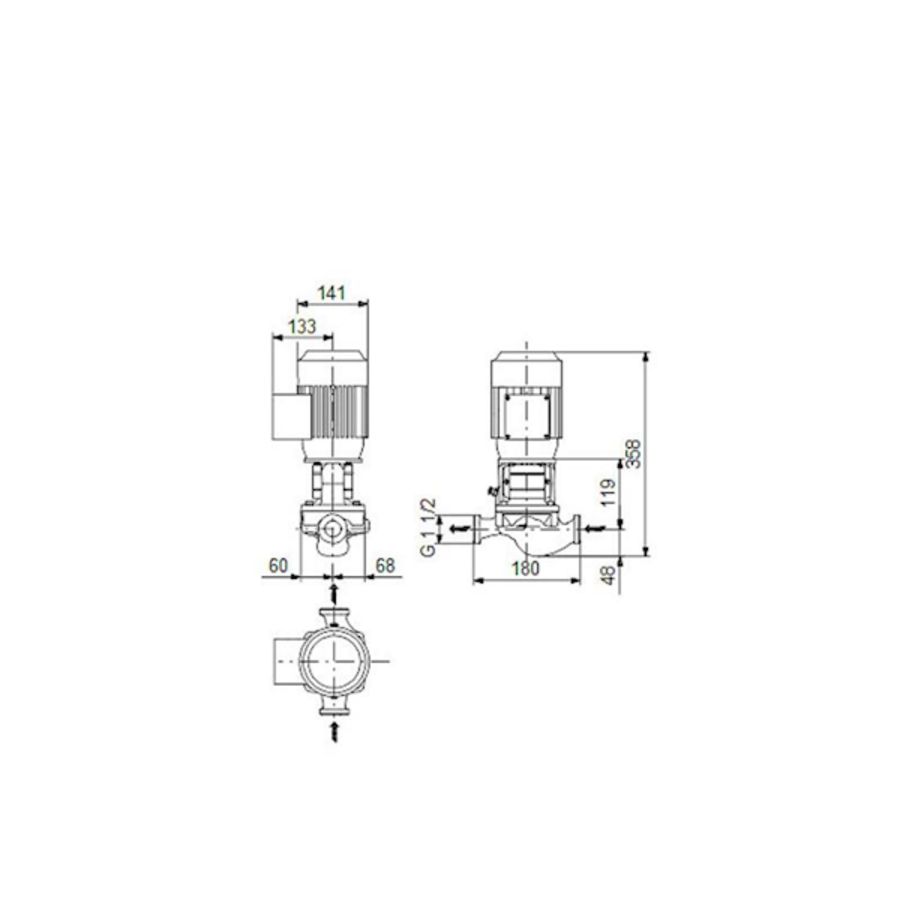

- Hoogte pomp: 358 mm
- Inbouwlengte: 180 mm
- Interface pulsbreedtemodulatie (PWM): Nee
- Interface pulsteller: Nee
- Interface signaal 0-10 V / 2-10 V: Nee
- Interface signaal 0-20 mA / 4-20 mA: Nee
- Interface signaal PT100 / PT1000 / PTC: Nee
- Isolatieklasse volgens IEC: F
- Kwaliteitsklasse: Gietijzer GG 20 (GJL-200)
- Kwaliteitsklasse materiaal waaier: Overig
- Kwaliteitsklasse pomphuis: Gietijzer GG 20 (GJL-200)
- Materiaal behuizing: Gietijzer
- Materiaal pomphuis: Gietijzer
- Materiaal waaier / pompwiel: Overig
- Max. debiet: 7,88 m³/h
- Max. mediumtemperatuur (continu): 120 °C
- Max. opvoerhoogte: 9 m
- Max. werkdruk: 10 bar
- Mediumtemperatuur (continu): -25 - 120 °C
- Merk: GRUNDFOS
- Met communicatie-interface RS-232: Nee
- Met communicatie-interface RS-485: Nee
- Met ovale tegenflenzen: Nee
- Min. mediumtemperatuur (continu): -25 °C
- Minimum Efficiëntie Index (MEI): 0,7
- Motor met verlengde as: Nee
- Motorvermogen: 0,37 kW
- Nom. debiet: 7,88 m³/h
- Nom. diameter: DN 25
- Nom. diameter aansluiting inlaatzijde: 1 1/2" (40)
- Nom. diameter aansluiting perszijde: 1 1/2" (40)
- Nom. spanning: 220 - 230 V
- Nom. stroom: 2,95 A
- Normmotor: Ja
- Omgevingstemperatuur: -30 - 40 °C
- Ondersteunt protocol voor BACnet IP: Nee
- Ondersteunt protocol voor BACnet MS / TP: Nee
- Ondersteunt protocol voor CAN / CANOpen: Nee
- Ondersteunt protocol voor EtherNet/IP: Nee
- Ondersteunt protocol voor KNX: Nee
- Ondersteunt protocol voor LIN Bus: Nee
- Ondersteunt protocol voor LON / LONWorks: Nee
- Ondersteunt protocol voor Modbus RTU: Nee
- Ondersteunt protocol voor Modbus TCP: Nee
- Ondersteunt protocol voor PROFIBUS: Nee
- Ondersteunt protocol voor PROFINET IO: Nee
- Opvoerhoogte bij nom. debiet: 77,75 kPa
- Potentiaalvrij schakelcontact: Nee
- Radiostandaard WLAN 802.11: Nee
- Serie: TP
- Standaard radio 2G / 3G / 4G: Nee
- Toerenregeling motor: Geen
- Toerental: 2865 1/min
- Type: 1"1/2 (40), 2-polig (2900 tpm)
- Volumestroom (BEP): 7,88 m³/h
- Zelfaanzuigend: Nee
