Inlinepomp TP 65-120/2-A-F-A-BQQE 400Y 50HZ GRUNDFOS
0BD5954
MFG #: 98585759
€2.914,00
/ 1.00
- Merk: GRUNDFOS

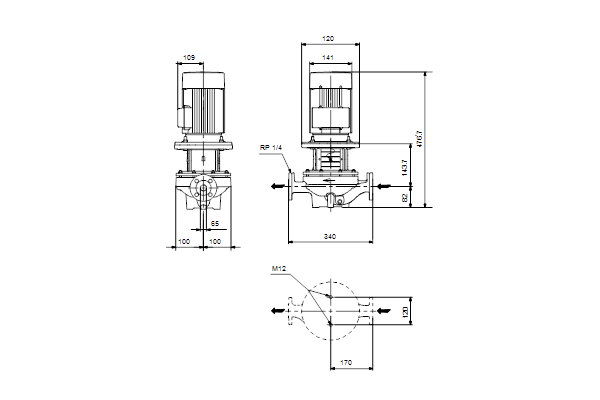

- Inbouwlengte: 340 Millimeter
- 5G-netwerk standaard: Nee
- Aansluiting inlaatzijde: Flens
- Aansluiting perszijde: Flens
- Aansluitstandaard inlaatzijde: EN 1092-2
- Aansluitstandaard perszijde: EN 1092-2
- Aantal fasen: 3
- Afgegeven motorvermogen (P2): 1.1 Kilowatt
- Bluetooth-netwerk standaard: Nee
- Communicatie: Geen
- Druk bij volumestroom (BEP): 81.37 Kilopascal
- Druktrap flens aansluiting inlaatzijde: PN 10
- Druktrap flens aansluiting perszijde: PN 10
- Dubbelpomp: Nee
- Elektrische aansluiting: Aansluitklemmen
- Explosieveilig: Nee
- Frequentie: Overig
- Interface pulsbreedtemodulatie (PWM): Nee
- Interface pulsteller: Nee
- Interface signaal 0-10 V / 2-10 V: Nee
- Interface signaal 0-20 mA / 4-20 mA: Nee
- Interface signaal PT100 / PT1000 / PTC: Nee
- Isolatieklasse volgens IEC: F
- Kwaliteitsklasse materiaal waaier: RVS 304 (1.4301)
- Kwaliteitsklasse pomphuis: Gietijzer GG 25 (GJL-250)
- Materiaal pomphuis: Gietijzer
- Materiaal waaier / pompwiel: Roestvaststaal (RVS)
- Max. debiet: 25.7 Kubieke meter per uur
- Max. opvoerhoogte: 12 Meter
- Max. werkdruk: 10 Druk
- Mediumtemperatuur (continu): -25 - 120
- Met communicatie-interface RS-232: Nee
- Met communicatie-interface RS-485: Nee
- Minimum Efficiëntie Index (MEI): 0.7
- Motor energie-efficiëntieklasse: IE3
- Motor met verlengde as: Nee
- Nom. diameter aansluiting inlaatzijde: DN 65
- Nom. diameter aansluiting perszijde: DN 65
- Nom. spanning: 380 - 415
- Nom. stroom: 4.35 Ampère
- Normmotor: Ja
- Omgevingstemperatuur: -30 - 60
- Ondersteunt protocol voor BACnet IP: Nee
- Ondersteunt protocol voor BACnet MS / TP: Nee
- Ondersteunt protocol voor CAN / CANOpen: Nee
- Ondersteunt protocol voor EtherNet/IP: Nee
- Ondersteunt protocol voor KNX: Nee
- Ondersteunt protocol voor LIN Bus: Nee
- Ondersteunt protocol voor LON / LONWorks: Nee
- Ondersteunt protocol voor Modbus RTU: Nee
- Ondersteunt protocol voor Modbus TCP: Nee
- Ondersteunt protocol voor PROFIBUS: Nee
- Ondersteunt protocol voor PROFINET IO: Nee
- Potentiaalvrij schakelcontact: Nee
- Standaard radio 2G / 3G / 4G: Nee
- Toerenregeling motor: Geen
- Toerental: 2880 Per minuut
- Volumestroom (BEP): 25.7 Kubieke meter per uur
- WLAN 802.11 netwerk standaard: Nee
- Zelfaanzuigend: Nee
